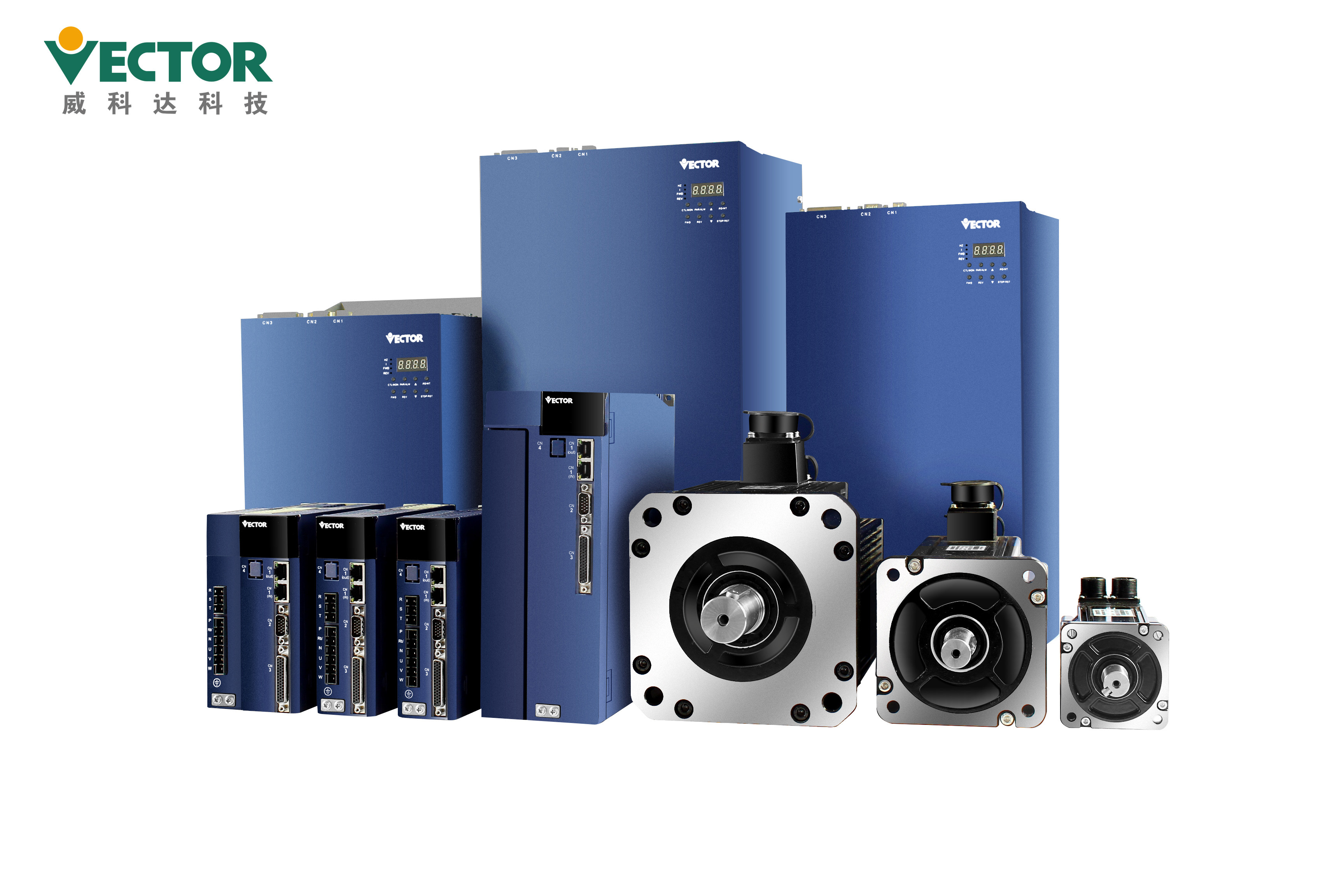

380V 75KW Three Phase Asynchronous/Synchronous High Torque Precise Servo Drive

High Torque Precise Servo Drive
Power 75KW
Three Phase 380V
CanOpen / EtherCAT
Torque Control Mode
17 bit absolute encoder;

Products Description

Installation Precautions

● When installing, do not block the suction and exhaust ports, and do not allow foreign objects

inside the product to enter,otherwise it may cause malfunction or fire due to aging of internal components.
● Do not place heavy objects on or under this product as this may result in injury.
● Please install in the following environment:
1.places without direct sunlight;
2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;
3.Relative humidity in the range of 0% to 95%, and no condensation;
4.Locations free of water droplets, vapors, dust and oily dust;
5.Locations where there is no high heat device;
6.Non-corrosive, flammable gas and liquid sites;
7.It is not easy to splash water, oil and medicine;
8.places that are not exposed to radioactive radiation;
9.Strong and vibration-free places;
10.Locations where there is no electromagnetic noise interference.

The panel contains 8 buttons and 5 digital tubes. Only 5 of the 8 buttons can be used, and the

remaining 3 buttons reserved. The general functions of the five buttons are shown in the table below.

Accessories:

	Accessory name	Image
Satandard Spare Parts	Power terminal		Adapt to E1,E2 structure drive
	Cn3 encoder plug		Encoder plug on the driver side
	Cn4 control terminal plug		Input/output signal terminals,user wiring
	Encoder connection line		The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector
	Power line		The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector
	Drive monitoring line		Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts	USB to RS232 Adapter cable		If necessary, self purchase
	Ethernet communication line		If necessary, self purchase

Certificates
1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the
variable speed electric driver system), corresponding to the national standard GB12668.501-2013;
3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility
standards and its specific test methods), corresponding to the national standard GB12668.3-2012.

Quality Checking:
Four times Production testing
Two Times 24 hoursTesting
100% Inspection Before Shipping

Delivery Time and Shipping Way

1. For small order we always can delivery out within 1 week.
2. Our products can be shippied via Air, Land or Sea.
