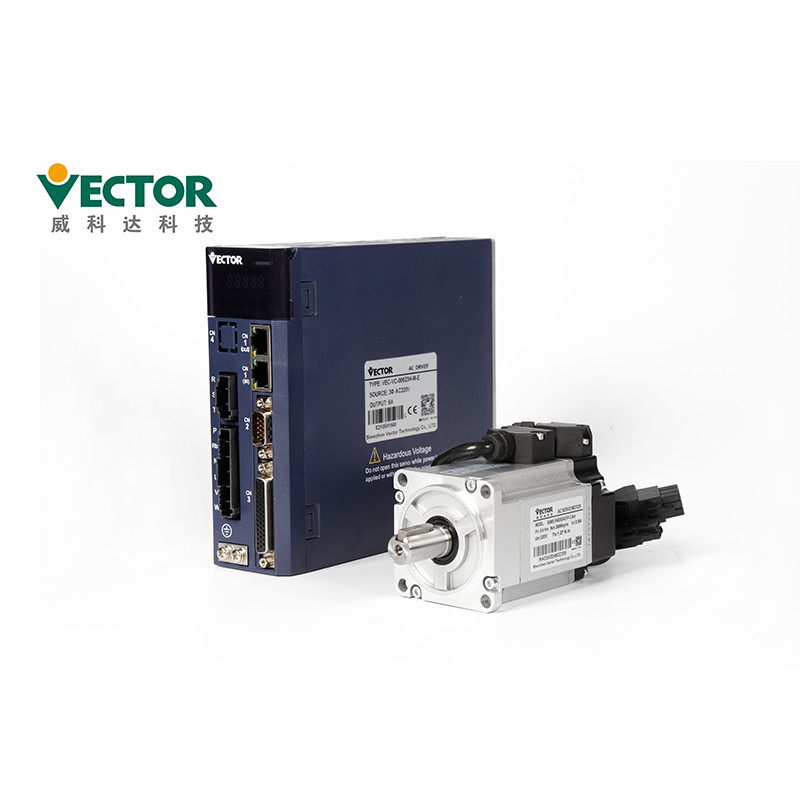

Economic Small Power Low Voltage 220V Three Phase Universal Variable Speed Drive

Universal Variable Speed Drive

AC Power 220V 0.2KW

Three phase with 17/23bit Tamagawa absolute encoder;

Modbus/CANopen/EtherCAT Commucation Protocol Type

Products Description

Installation:

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

Operating precautions

● in the test operation, in order to prevent accidents, please test the servo motor with no load

(not connected to the driver shaft), otherwise it may cause injury.

● when starting to operate on the supporting machine, set the user parameters that match the machine

in advance. If you start operation without parameter setting, it may cause mechanical loss or malfunction.

● to avoid accidents, install a limit switch or a stopper at the end of the movable part of the machine,

otherwise it will cause mechanical damage or injury.

● do not make extreme changes to the parameter settings, as this may result in

unstable operation, mechanical damage or injury.

●when the power is turned on or the power supply is cut off, the heat sink of the servo driver, external braking

resistor, motor, etc. may be in a high temperature state. Do not touch it, otherwise it may cause burns.

● when using a servo motor on the vertical axis, set a safety device to prevent the work piece from falling under

alarm, over travel, etc. In addition, please perform the servo lock stop setting when an over travel occurs,

otherwise the work piece may fall in the over travel condition.

● do not enter the operating range of the machine during operation, otherwise it will cause injury.

● do not touch the servo motor or the movable part of the machine during operation, otherwise it will cause injury.

● please set up the safety system to ensure safety even in the event of a signal line breakage. For example,

when the positive over travel switch (P-OT) and negative over travel switch (N-OT) signals are disconnected

at the factory setting, they operate safely.

● be sure to set the servo OFF state when turning off the power.

● do not turn the power on/off frequently. After the actual operation starts, the power ON/OFF interval should

be more than 1 hour, otherwise the components inside the servo unit will be prematurely aged.

●when an alarm occurs, reset the alarm after the cause is removed and ensure

safety, and restart the operation, otherwise it may cause injury.

● do not use the brake of the brake motor for normal braking, otherwise it may

cause a malfunction.

Accessories:

	Accessory name	Image
Satandard Spare Parts	Power terminal		Adapt to E1,E2 structure drive
	Cn3 encoder plug		Encoder plug on the driver side
	Cn4 control terminal plug		Input/output signal terminals,user wiring
	Encoder connection line		The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector
	Power line		The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector
	Drive monitoring line		Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts	USB to RS232 Adapter cable		If necessary, self purchase
	Ethernet communication line		If necessary, self purchase

Packing:

Delivery Time and Shipping Way

1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.

Cetificates:

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the

variable speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility

standards and its specific test methods), corresponding to the national standard GB12668.3-2012.
