380V Ac Servo System Position / Speed / Torque Control For Printing Machine

Servo Drive + Servo Motor

Power Covers 200W-110KW

Single/Three Phase 220V/380V

Modbus / CanOpen / EtherCAT

Location, Speed and Torque Control Mode

2500 line incremental + Hall encoder; 2500 line incremental; 17/23 bit Tamagawa absolute encoder;
24 bit Nikon absolute encoder

Products Description

How is the Servo System works? The Location control model, Speed control model and Trogue control model.

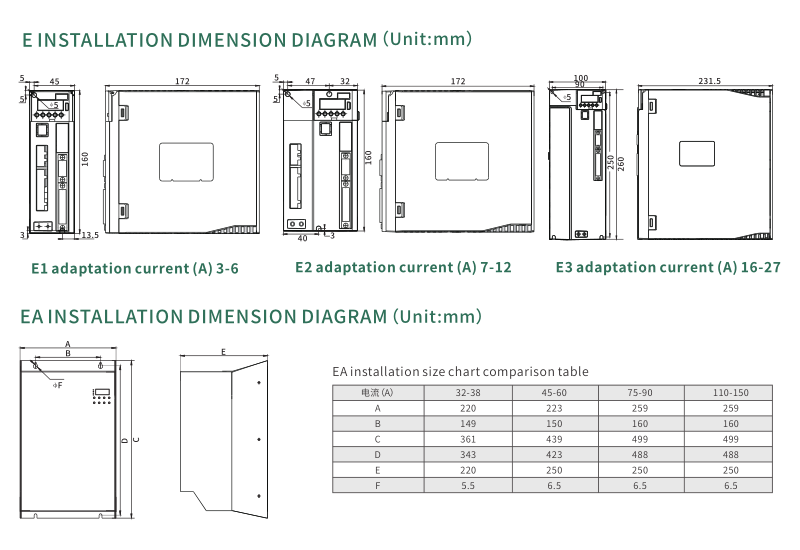

Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

● Please install in the following environment:

1.places without direct sunlight;

2.Locations where the ambient temperature is in the range of 0 ° C to 55 ° C;

3.Relative humidity in the range of 0% to 95%, and no condensation;

4.Locations free of water droplets, vapors, dust and oily dust;

5.Locations where there is no high heat device;

6.Non-corrosive, flammable gas and liquid sites;

7.It is not easy to splash water, oil and medicine;

8.places that are not exposed to radioactive radiation;

9.Strong and vibration-free places;

10.Locations where there is no electromagnetic noise interference.

Accessories

	Accessory name	Image
Satandard Spare Parts	Power terminal		Adapt to E1,E2 structure drive
	Cn3 encoder plug		Encoder plug on the driver side
	Cn4 control terminal plug		Input/output signal terminals,user wiring
	Encoder connection line		The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector
	Power line		The standard cable length is 3, 5, 8, 10, 13, 15 meters, according to customer needs Provide independent connector
	Drive monitoring line		Connect and adjust the software for remote monitoring and firmware update
Purchasing Spare Parts	USB to RS232 Adapter cable		If necessary, self purchase
	Ethernet communication line		If necessary, self purchase

Certificates

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the variable

speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility standards

and its specific test methods), corresponding to the national standard GB12668.3-2012.

Delivery Time and Shipping Way

1. For small order we always can delivery out within 1 week.

2. Our products can be shippied via Air, Land or Sea.
