1KW 4Nm 2500rpm Multi-Axis Servo System For Cutting Machine

Servo Drive + Servo Motor

Power Covers 200W-110KW

Single/Three Phase 220V/380V

Modbus / CanOpen / EtherCAT

Products Description

Servo Drive Description- Detaails about a Servo Drive, how to select the Servo drive model and do installation?

● Install the driver on a dry and sturdy platform. Maintain good ventilation and

heat dissipation during installation and maintain good grounding.

● Please install in the specified direction to avoid malfunction.

● When installing, please ensure that the servo driver is kept at a specified

distance from the inner surface of the cabinet and other machines, otherwise it may cause fire or malfunction.

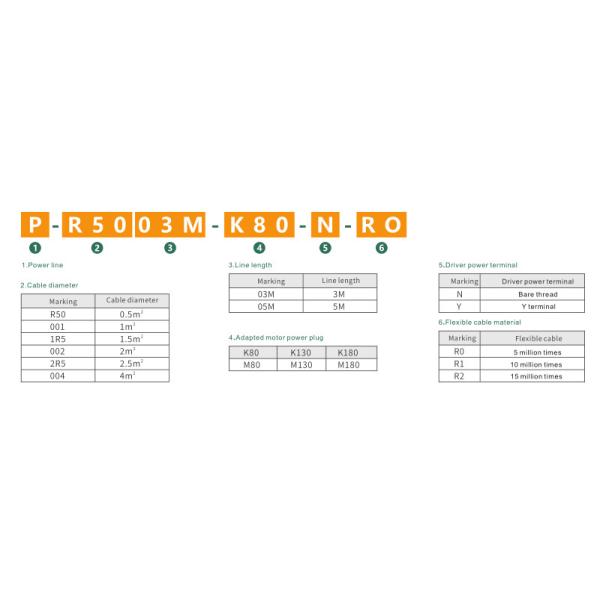

Power Lines and Encoder

Certificates

1. CE (EU Safety Standard);
2. IEC/EN61800-5-1:2007 (Safety requirements for electrical, thermal and energy in Section 5-1 of the variable

speed electric driver system), corresponding to the national standard GB12668.501-2013;

3, IEC / EN61800-3: 2004 + A1 (speed control electric driver system part 3 electromagnetic compatibility standards

and its specific test methods), corresponding to the national standard GB12668.3-2012.

Other Questions:

Q1. How to select the suitable model?
A: Please confirm your requirements for Rated Power, Current, Voltage,

Torque and select the suitable model based our model list;

Q2. How to set the programming system?
A: Our Servo drive support the Global Communication protocols: Modbus/CANopen/EtherCAT,

Please Just make the programming follow your experiences;

Q3. What's the power range about our servo system?
A: Our Power range covers 0.2-110KW, reach your requirements;

Q4. What's the encoder feedback interfaces we using?
A: We have multiple Encoder feedback interfaces, like : incremental/wire-saving encoder,

17-bit/23-bit/24-bit absolute encoder, resolver encoder, etc.
